Available

TDS Barge Rig 22 — 3,000 HP

24-Hour Posted Barge Drilling Rig — 35,000 ft Rated, CanRig 750 Top Drive, SEMCO Marine Design

3,000
Horsepower
Continental EMSCO C-3
35,000 ft
Drill Depth
Rated
2,000,000
Hook Load (lbs)
SOMAC 152-ft Mast
250×70 ft
Barge Dimensions
SEMCO Marine / 18 ft depth

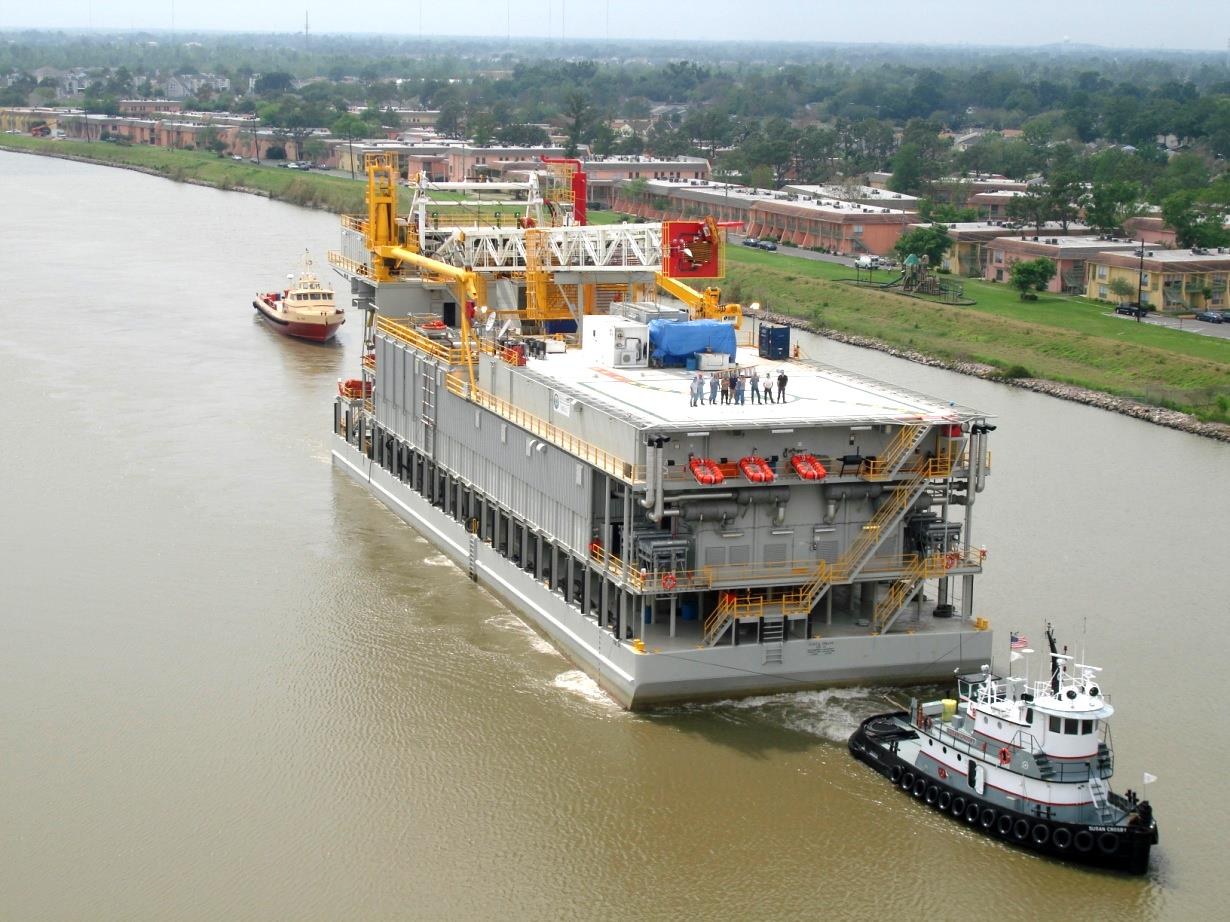

TDS Barge Rig 22 — 3,000 HP posted barge drilling rig on waterway
TDS Barge Rig 22 — 3,000 HP Posted Barge Rig, Constructed 2007, Major Upgrade 2011

TDS Barge Drilling Rig 22 is the most capable barge drilling rig in the Gulf of Mexico Transition Zone — a 24-hour posted barge rig constructed in 2007 by SEMCO Marine, rated to 35,000 feet with a 2,000,000-lb hook load. In 2011, Freeport-McMoRan invested more than $20 million in upgrades enabling Rig 22 to drill into the deepest and toughest formations in the area, including a 20K BOP stack capability.

Premium Asset — Deepest-Capable Barge in the GOM/Transition Zone

Rig 22 drilled exclusively for Freeport-McMoRan Oil & Gas (NYSE: FCX) from 2007 through 2016. FCX invested over $20MM in upgrades in 2011 to handle 20,000 PSI BOP stacks — making this rig uniquely positioned for deep-shelf barge drilling in the U.S. Gulf Coast, West Africa, Southeast Asia, and the Middle East. Current asset cost value: approximately $60 million.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Top Drive

  • Make/ModelContinental EMSCO C-3 Type 2
  • HP3,000 HP
  • Motors3 × GE 1100 HP High Torque
  • Top DriveCanRig 750 Ton
  • Rotary Table49½" Pin Drive, 1000 Ton
  • Iron RoughneckNOV IR 3080
🚢

Barge Hull

  • DesignSEMCO Marine
  • Length250 ft
  • Beam70 ft
  • Hull Depth18 ft
  • Draft8 ft 0.5 in
  • Type24-Hr Posted Barge
  • Year Built2007 (Major Upgrade 2011)
💧

Mud Pumps

  • Qty3
  • Make/ModelLeTourneau W-2215
  • HP2,200 HP each
  • MotorsGE High Torque 752
  • Discharge7,500 PSI

Power System

  • Engines4 × CAT 3516 Electric (3,500 HP)
  • Generators4 × KATO 2,000 KW
  • Cooling4 Cooling Towers
  • SCR6-SCR panels, 5 generator panels
  • Standby1 × CAT 350 KW E-Gen
Capabilities

Key Advantages

01

Deepest-Rated Barge in the Market

SOMAC 152-ft mast with 2,000,000-lb static hook load, 35-ft bottom spread. Rated to 35,000 ft — one of only a handful of barge rigs capable of performing deep-shelf drilling in the Gulf Coast transition zone.

02

20K BOP Stack Capability

Equipped to handle up to 20,000 PSI BOP stacks with an 18¾" 15K BOP in inventory. CanRig 750-ton top drive, NOV IR 3080 iron roughneck, and Access Back Saver air slips rated at 750 tons.

03

$20MM+ FCX Upgrade Package

Freeport-McMoRan invested over $20 million in upgrades in 2011, enabling Rig 22 to safely drill into the deepest and toughest formations in the GOM/Transition Zone. Current asset replacement cost exceeds $60 million.

Complete Data

Full Equipment Specifications

Barge Hull

DesignSEMCO Marine
Length250 ft
Beam70 ft
Hull Depth18 ft
Draft8 ft 0.5 in
Type24-Hour Posted Barge
Year Constructed2007
Major Upgrade2011 ($20MM+ FCX investment)

Drawworks

Make/ModelContinental EMSCO C-3 Type 2
HP3,000 HP
Motors3 × GE 1100 HP High Torque
Gear Box2 Speed, 1-752 GE Electric Motor

Mast & Rotary

MastSOMAC 152 ft
Hook Load2,000,000 lbs static
Bottom Spread35 ft
Rotary Table49½" Pin Drive, 1,000 Ton
Rotary Drive2-Speed Gear Box, 1-752 GE Electric
Iron RoughneckNOV IR 3080
Air SlipsAccess Back Saver, Offset for Top Drive, 750 Ton

Top Drive & BOP

Top DriveCanRig 750 Ton
Tubular HandlingNOV IR 3080 Iron Roughneck
BOP CapabilityUp to 20,000 PSI BOP stack
BOP in Inventory18¾" 15K BOP stack

Mud Pumps

Qty3
Make/ModelLeTourneau W-2215
HP2,200 HP each
MotorsGE High Torque 752
Discharge Pressure7,500 PSI

Power & Cranes

Engines4 × CAT 3516 Electric Fuel Efficient (3,500 HP)
Generators4 × KATO 2,000 KW
Cooling4 Cooling Towers
SCR System6-SCR panels, 5 generator panels (1 spare, cooling inside SCR house by 20T AC)
Standby Generator1 × CAT 350 KW E-Gen
Drill Floor Crane1-30 TON SEATRAX GANTRY TYPE
Pipe Rack Crane1-30 TON OIL STATE MOD. 60B33A-70

Notable History

Primary Operator (2007–2016)Freeport-McMoRan Oil & Gas (NYSE: FCX)
FCX Upgrade Investment (2011)$20,000,000+
Original Build Cost (2007)$30,500,000
Current Asset Value~$60,090,161
Key MarketsUSA Gulf Coast, Nigeria, Ghana, Indonesia, Kuwait, Kazakhstan

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
