2009 Fifth Generation Ultra-Deepwater Semisubmersible

A fifth-generation ultra-deepwater moored semisubmersible based on the Odeco Victory design, originally entered service in 1975 and comprehensively upgraded in 2009. Rated to 8,000 ft water depth and 35,000 ft drilling depth, the rig features a 170 ft NOV derrick with 1,000 ST hook load, four 1,085 HP NOV 14-P-220 mud pumps, a NOV PS2-1000 top drive, and 7x Himsen diesel power generation totalling 42,840 kW. A proven deep-water moored platform with a 12-point mooring system and 140-person accommodation.

Technical Overview

Key Equipment Specifications

🏗️

Derrick & Hoisting

DerrickNOV 170 ft, 48 ft × 46 ft base
Hook Load1,000 ST static
DrawworksNOV 2040-UDBEL(L) — 4,000 HP
Drill Line2" drilling line
Top DriveNOV PS2-1000, 1,000 T
CompensatorNOV DSMC — 1,000 kips, 25 ft stroke

🌊

Subsea & BOP

BOP StackHydril 18-3/4" 15,000 psi 5-ram
Annular Preventers2x Hydril 18-3/4" 10,000 psi
Choke & Kill8x 3-1/16" 15,000 psi
Marine RiserShaffer 21" FT-GB, 75 ft/joint
TensionersNOV 6-line, 2,400 kips total
Moonpool91 ft × 25 ft

💧

Mud System

Mud Pumps4x NOV 14-P-220
Pump Rating1,085 HP, 7,500 psi each
Shale Shakers4x Brandt AX-1 Multisizers
Liquid Mud9,675 bbl storage
Drill Water13,169 bbl
Fuel6,234 bbl

🔌

Power & Station Keeping

Main Power7x Himsen diesel engines
Total Power42,840 kW
Mooring12-point, 8x Amclyde CTW 350/52 winches
Stall Tension718 kips per winch
Deck Cranes2x 90 MT Seatrax 9040 + 1x 65 MT
Accommodation140 persons

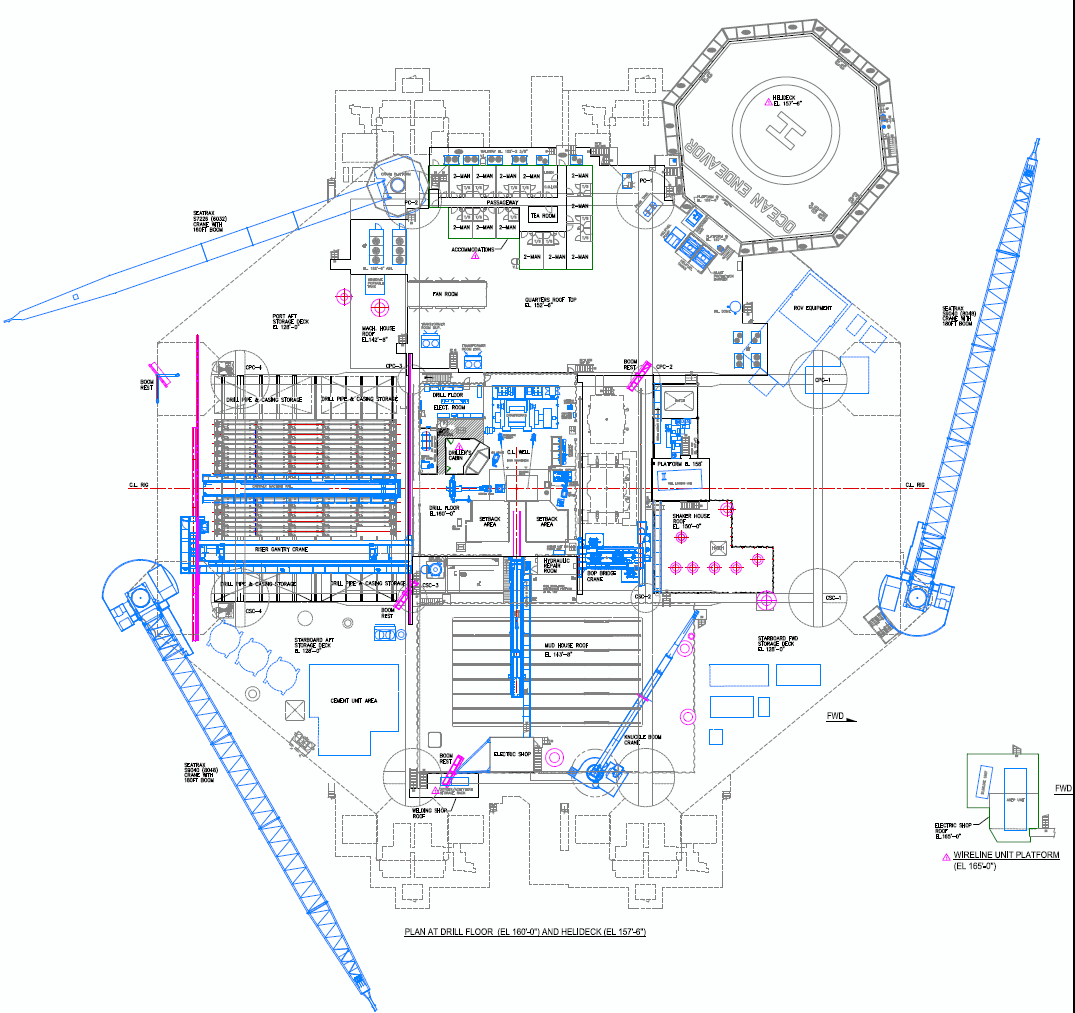

Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

Ultra-Deepwater Rating

Designed for 8,000 ft water depth with 12-point mooring. Outfitted for 5,000 ft with full subsea package including 18-3/4" 15,000 psi BOP and 21" riser.

02

4,000 HP Drawworks

NOV 2040-UDBEL(L) drawworks at 4,000 HP with 2" drill line and a 1,000-kip passive heave compensator with 25 ft stroke for deepwater drilling performance.

03

High-Capacity Mud System

Four NOV 14-P-220 mud pumps at 1,085 HP and 7,500 psi each, with a comprehensive solids control package and 9,675 bbl liquid mud storage.

04

Large Accommodation

140-person accommodation with a Sikorsky S-92A capable helideck, making this rig suitable for extended deepwater campaigns in remote offshore locations.

Complete Data

Full Equipment Status

General

Design	Odeco Victory
Year Upgraded	2009
Classification	ABS +A1 Column Stabilised Drilling Unit
Main Deck	306 ft × 306 ft
Draft (Drilling)	74.6 ft
Displacement	42,570 MT
Variable Deck Load	6,000 MT drilling
Water Depth	8,000 ft designed / 5,000 ft outfitted
Drilling Depth	35,000 ft
Accommodation	140 persons

Drilling Equipment

Derrick	NOV 170 ft, 1,000 ST hook load
Drawworks	NOV 2040-UDBEL(L), 4,000 HP
Top Drive	NOV PS2-1000, 1,000 T
Rotary Table	NOV T-6050, 60-1/2"
Mud Pumps	4x NOV 14-P-220, 1,085 HP, 7,500 psi
Shale Shakers	4x Brandt AX-1, 1,500 gpm

Subsea

BOP Stack	Hydril 18-3/4" 15,000 psi 5-ram
Marine Riser	Shaffer 21" FT-GB, 75 ft/joint
Tensioners	NOV 6-line, 2,400 kips total, 50 ft stroke
Moonpool	91 ft × 25 ft

Storage

Liquid Mud	9,675 bbl
Drill Water	13,169 bbl
Fuel	6,234 bbl
Potable Water	2,904 bbl
Bulk Cement	15,500 ft³

Power & Mooring

Main Power	7x Himsen diesel, 6,120 kW each
Total Power	42,840 kW
Mooring	12-point Amclyde CTW 350/52 winches, 718-kip stall tension
